FEATURES

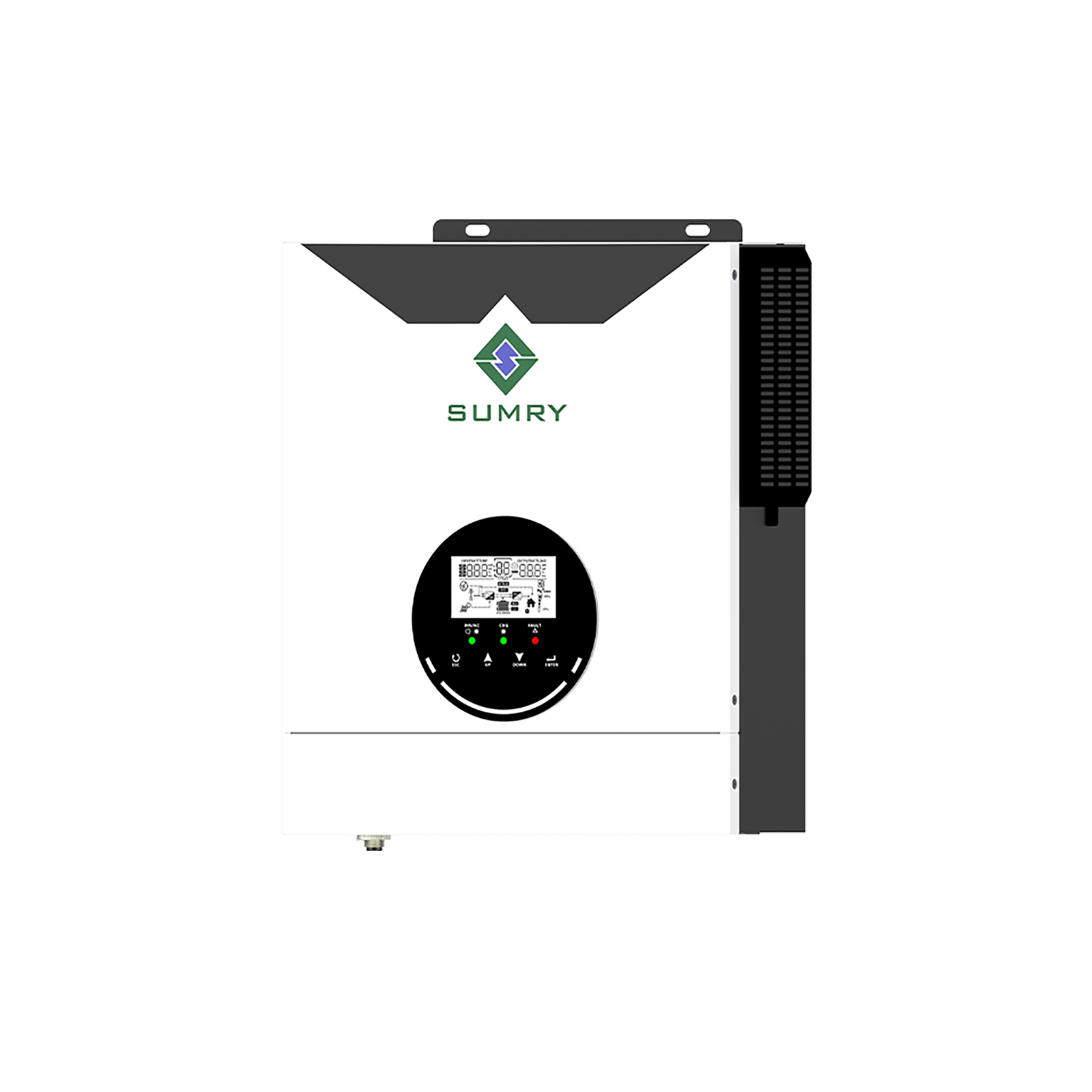

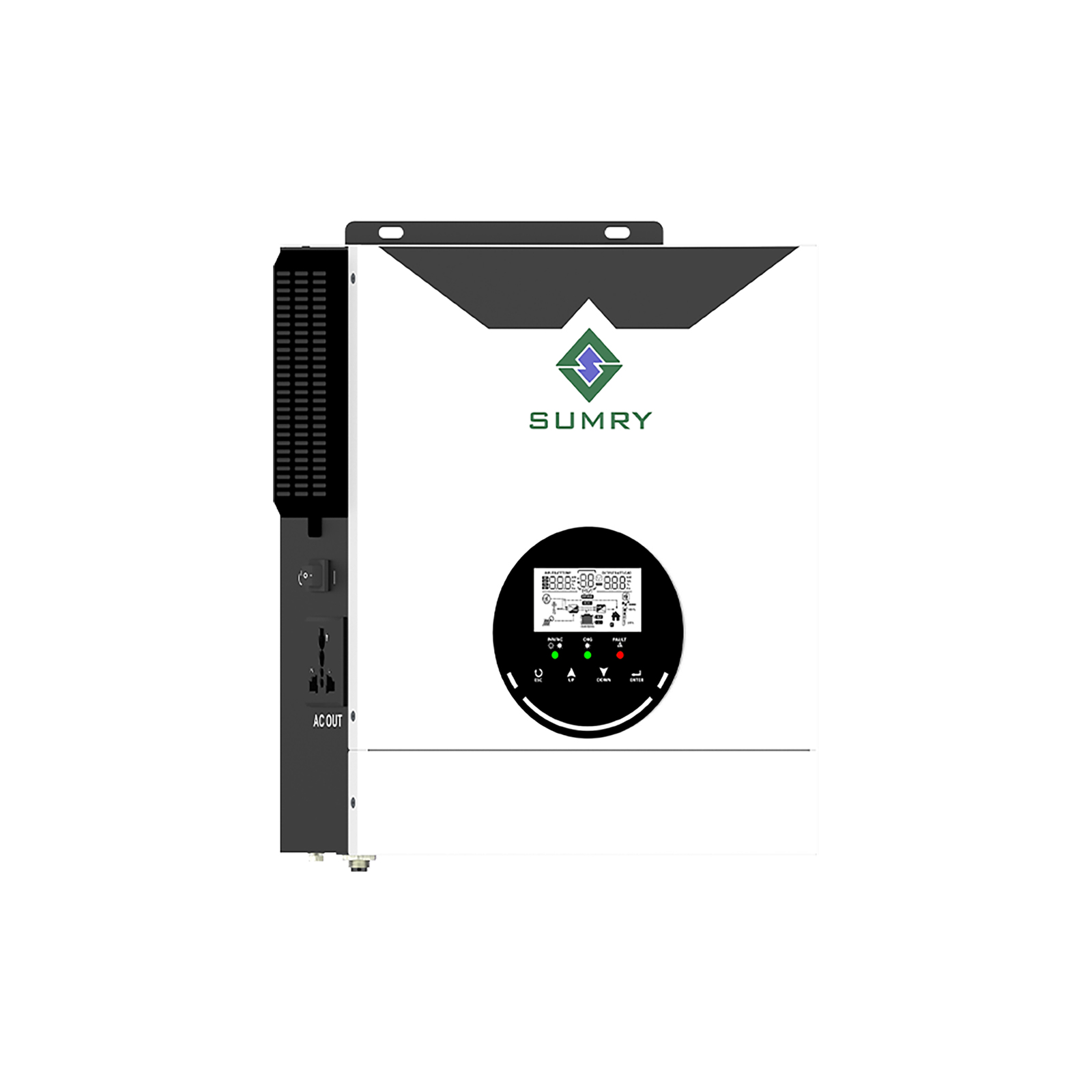

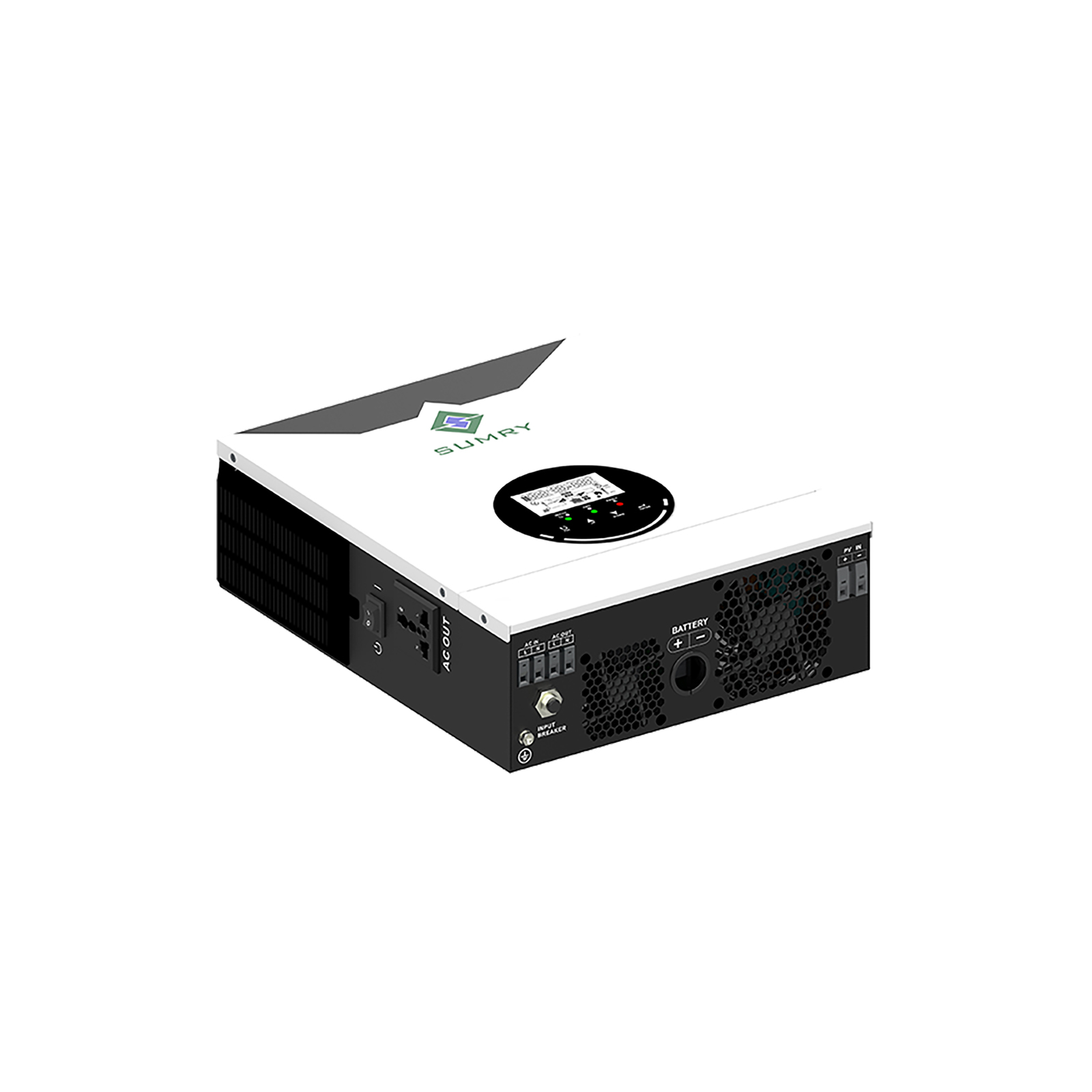

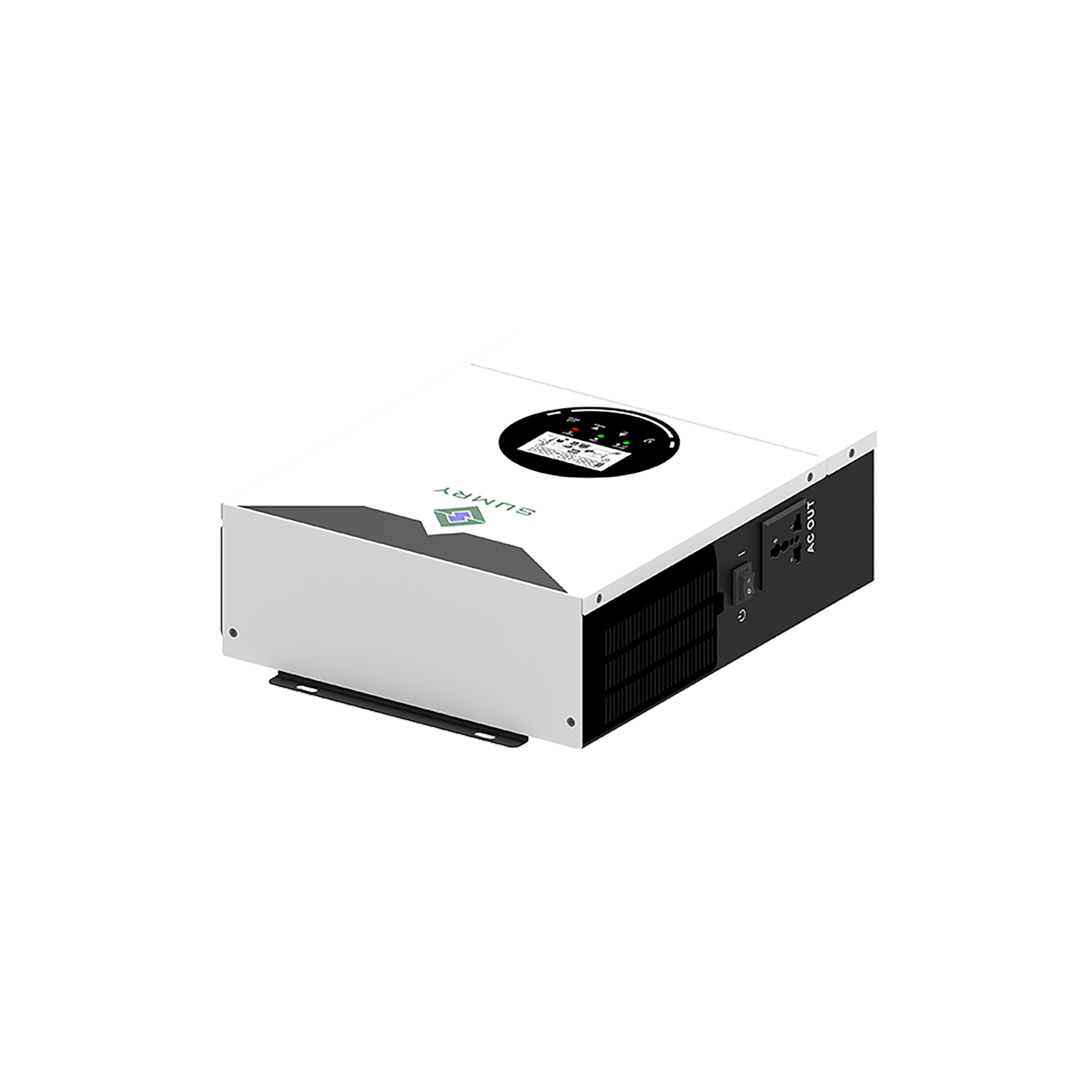

Pure sine wave solar inverter
Built-in 40A MPPT solar charger
PV input voltage range 20-150VDC(for 1000W),30-150VDC(for 1500W)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
meet rich customized demands
Solar energy is provided directly to the load first
PRODUCT DATA SHEET
MODEL | NMS-1000W | NMS-1500W |
Rated Output Power | 1000VA/1000W | 1500VA/1500W |
AC INPUT |
|
|
Voltage | 230VAC |
|
Selectable Voltage Range | 170-280VAC(For Personal Appliances) |
|
| 90-280VAC (For Home Appliances) |
|
Frequency Range | 50Hz/60Hz(Auto sensing) |
|
AC OUTPUT |
|
|
AC Voltage Regulation | 230VAC±5% |
|
Surge Power | 2000VA | 3000VA |
Efficiency(Peak)PV to INV | 98% |
|
Efficiency(Peak)Battery to INV | 94% |
|
Transfer Time | 10ms |
|
BATTERY |
|
|
Battery Voltage | 12VDC | 24VDC |
Floating Charge Voltage | 13.5VDC | 27VDC |
Overcharge Protection | 16VDC | 32VDC |
SOLAR CHARGER & AC CHARGER |
|
|
Solar Charger Type | MPPT |
|
Maximum PV Array Power | 600W | 1200W |
MPPT Range @ Operating Voltage | 20-150VDC | 30-150VDC |
Maximum PV Array Open Circuit Voltage solar | 150VDC |
|
Maximum Solar Charge Current | 40A |
|
Maximum AC Charge Current | 40A |
|
Maximum Charging Current(Solar+AC) | 80A |
|
PHYSICAL |
|
|
Dimension,D*W*H(mm) | 290*240*91 |
|
Carton Dimension,D*W*H(mm) | 340*290*145 |
|
Net Weight(kgs) | 3 | 3.5 |
Gross Weight(kgs) | 3.5 | 4 |
ENVIRONMENT |
|
|
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
|
Operationg Temperature | -10℃-50℃ |
|
STANDARD |
|
|
Compliance Safety | CE |
|
