LITHIUM BATTERY(B) SERIES

Series： WALL MOUNTED LITHIUM BATTERY
Detail

FEATURES



MODEL
25.6V100AH
25.6V2000AH
48V100AH
48V200AH
Normal charging voltage
29.2V
29.2V
54.75V
54.75V
Maximum charging curent
100A
100A
100A
100A
Discharge termination voltage
21.6V
21.6V
40.5V
40.5V
Recommended dischargetermination voltage
22.4V
22.4V
42V
42V
Maximum discharge current
100A
100A
100A
100A
Single cell chargingoveryoltage protection
3.8V
3.8V
3.8V
3.8V
Overvoltage protection forthe whole battery
29.2V
29.2V
54.75V
54.75V
Low voltage protection forsingle cell discharge
2.7V
2.7V
2.7V
2.7V
Low voltage protection forwhole group discharge
21.6V
21.6V
40.5V
40.5V
Charge overcurrent protection
102~112A
102~112A
102~112A
102~112A
Discharge overcurrent protection
102~122A
102~122A
102~122A
102~122A

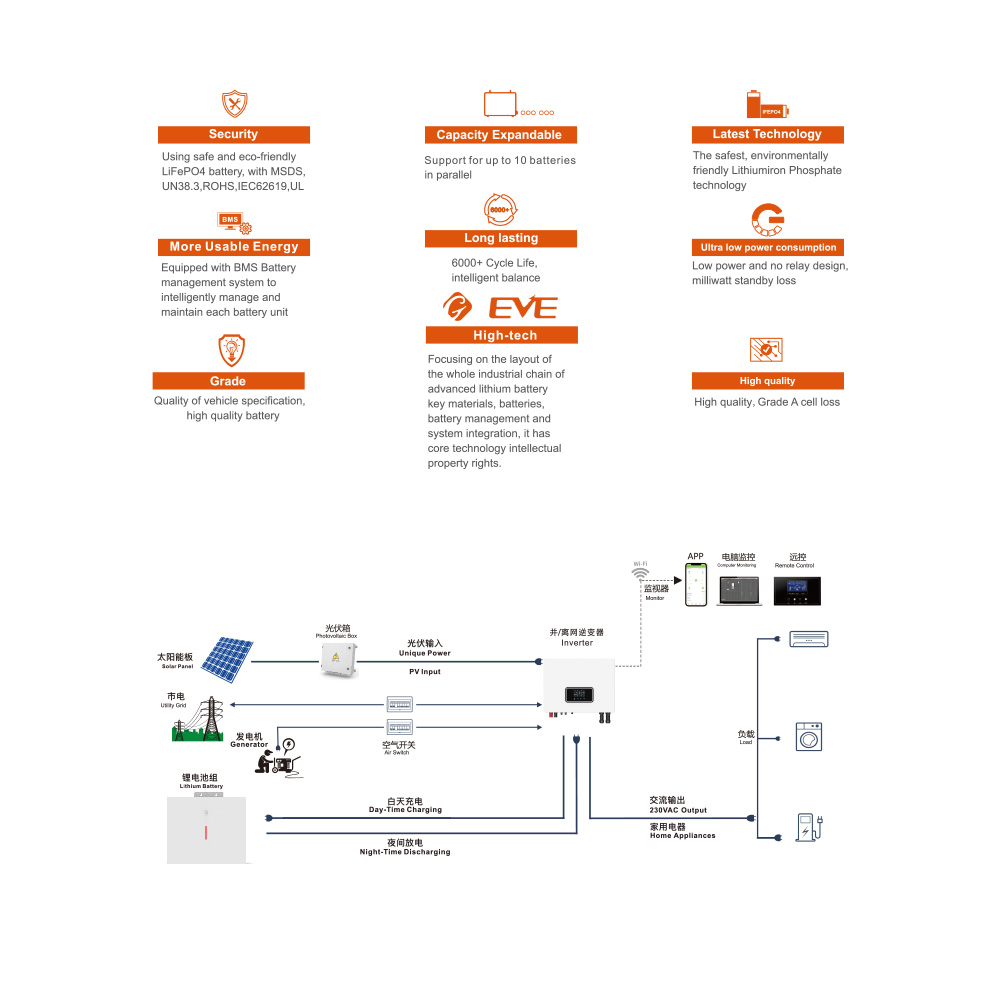

BMS Features

High accuracy cell level voltage,current measuring

Over-charge,over-discharge protection

short-circuit protection

self-learning intellingent SOC calculation

Cell level active equalization

Multiple communication type

Parallel connect function

Working temperature
0-15°C±55°C
Storage temperature
0-20°C±50°C
Single Battery Module   Dimensions(mm)
541*480*190
541*480*190
541*480*190
541*480*190
Single Battery Module   Weuggt(kg)
27KG
54KG
54KG
110KG
