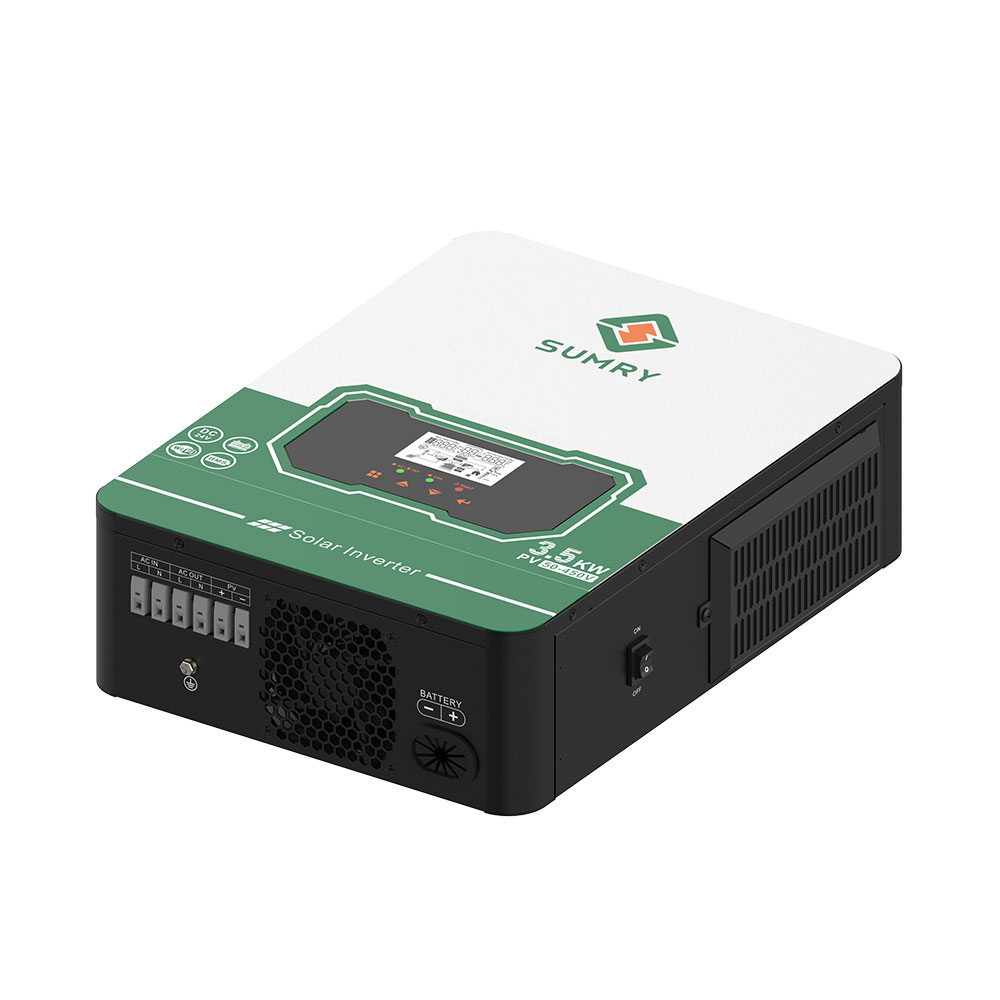

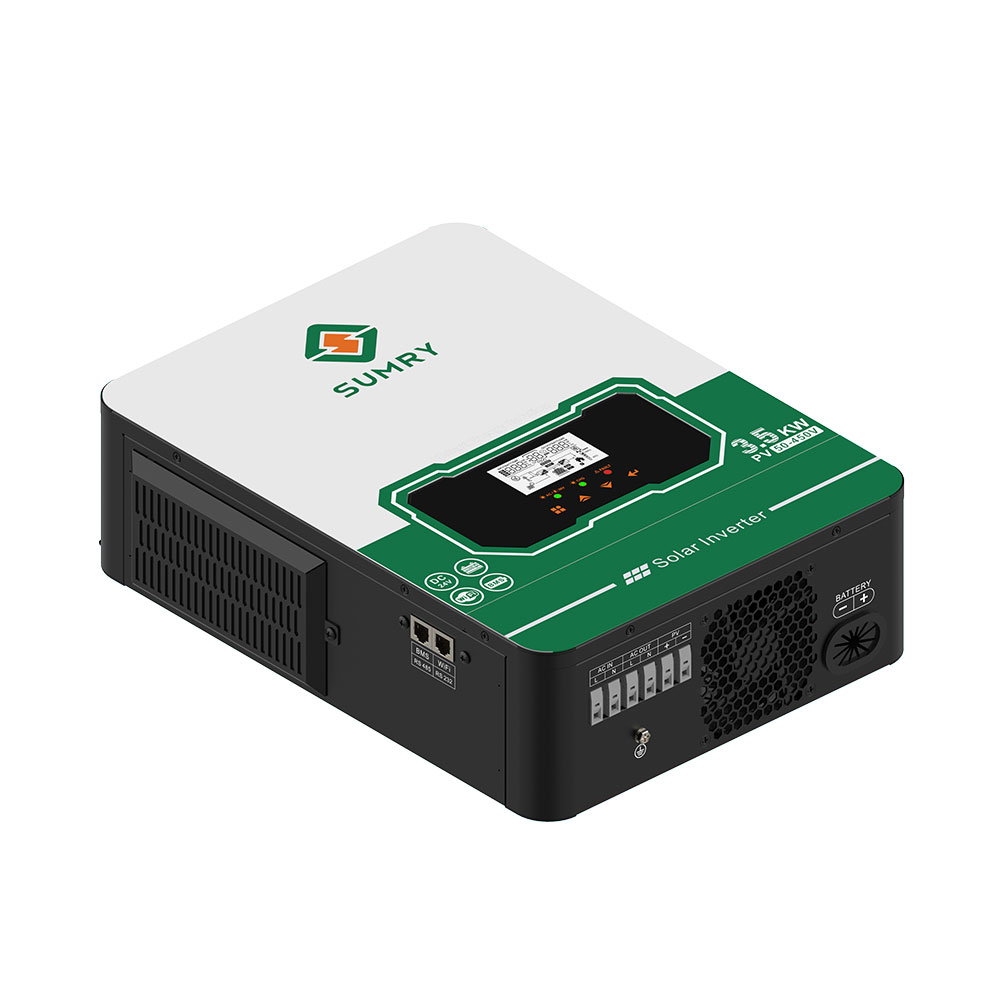

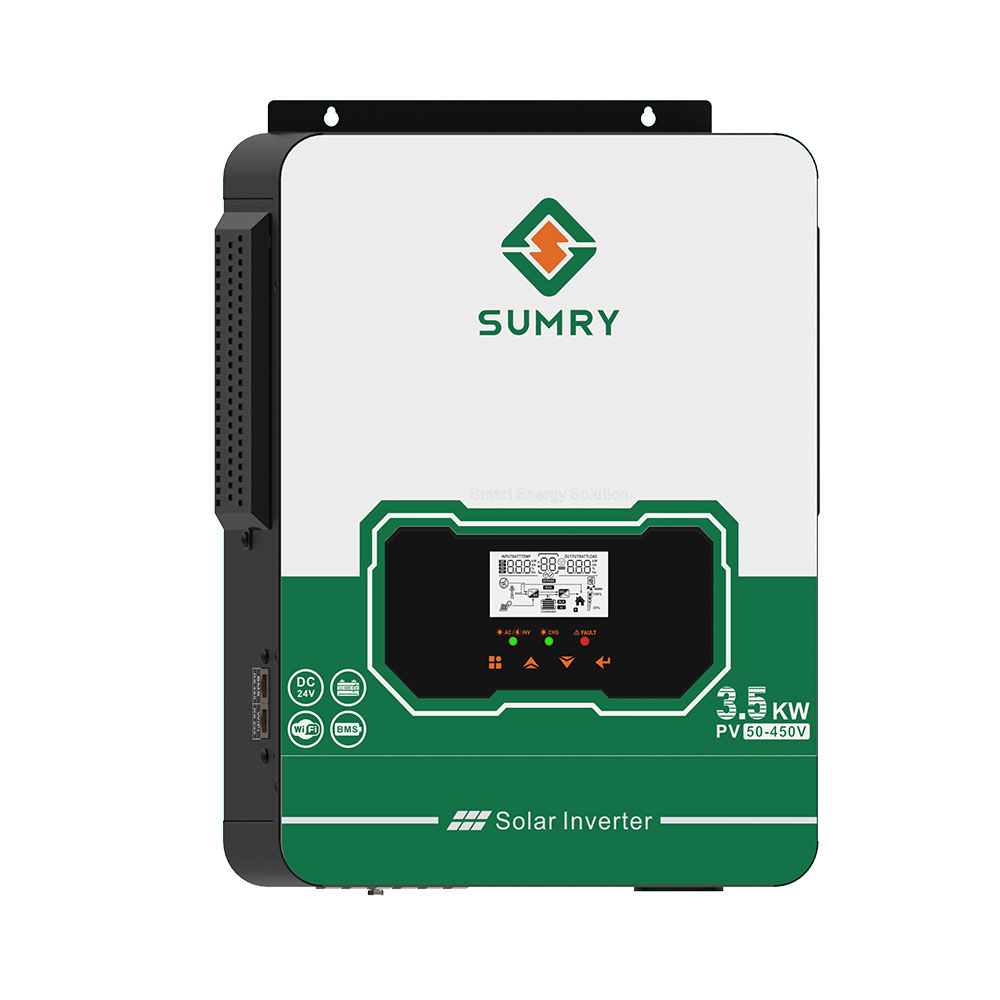

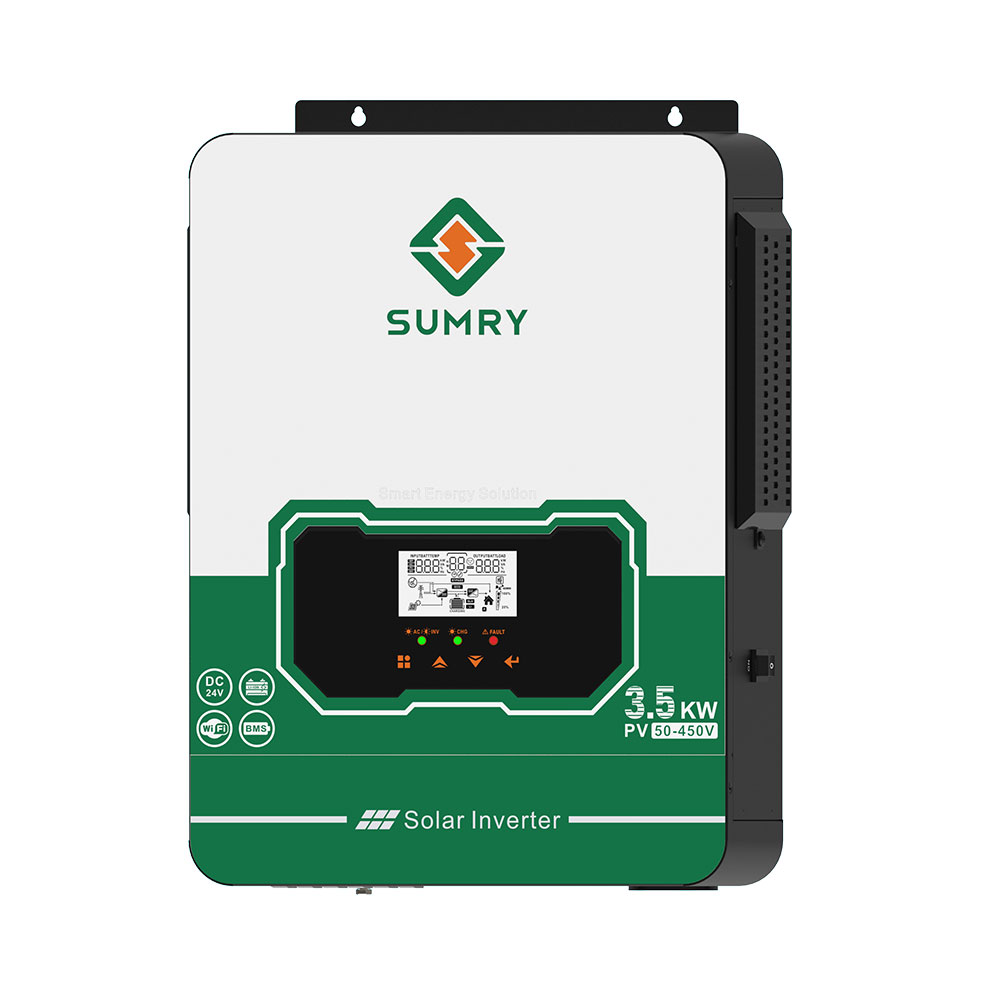

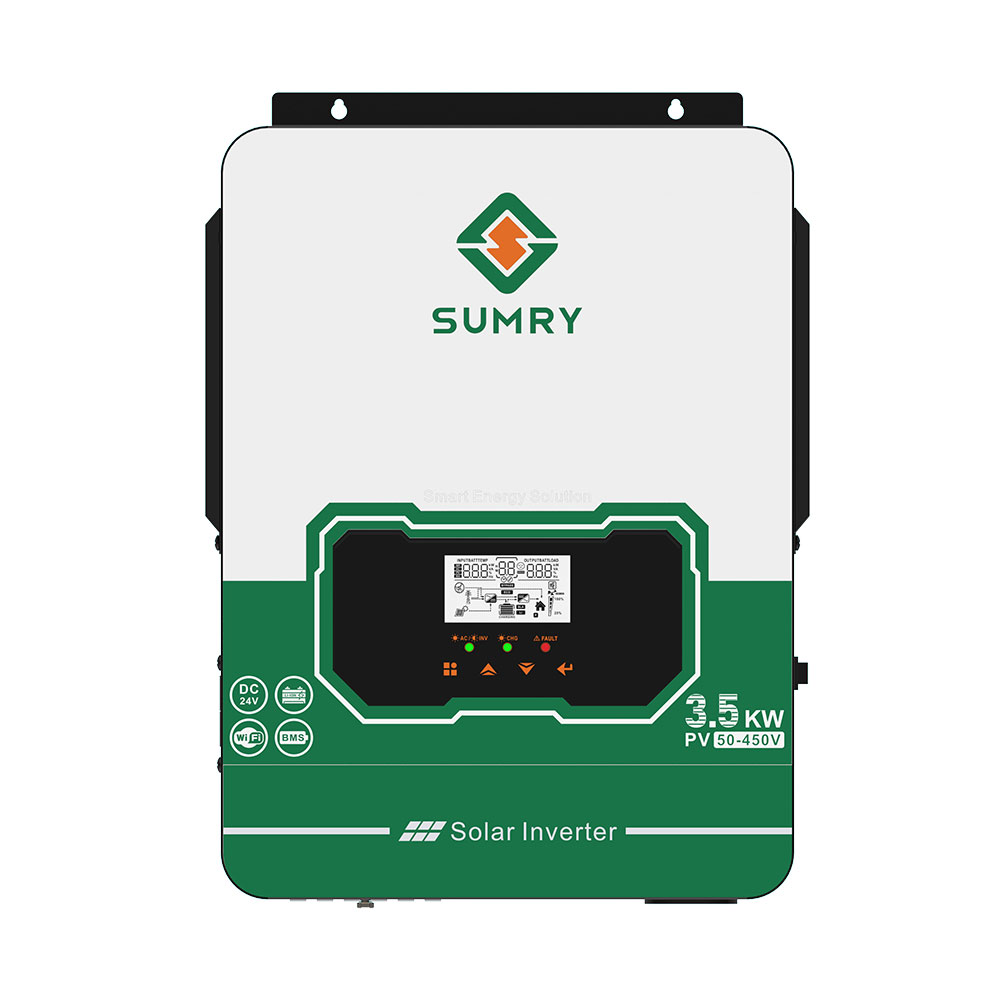

SPE2.5-3.5KW SERIES
FEATURES
Pure sine wave solar inverter(on/off Grid)
WIFI &GPRS available for IOS and Android
Dual communication ports for Battery communication and WiFi communication
High PV input voltage range(60~450VDC)
Smart battery charge design to optimize battery life
Offline upgrade through COMM port
Inverter-lithium battery communication status displayed directly on the LCD interface
Output power factor 1.0
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in MPPT Solar charge Built-in anti-dust kit for harsh environment
Maximum PV input current: 18A
Add lithium battery information display to the APP
MODEL | SPE-2.5KW | SPE-3.5KW |
PHASE | Single phase |
Maximum PV Input Power | 4000W | 6000W |
Rate Output Power | 2500W/2500VA | 3500W/3500VA |
Grid-Tie OPERATION |
PV INPUT(DC) |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC |
MPPT Voltage Range | 60~450VDC |
Maximum Input Current | 18A |
EFFICIENCY |
Maximum Conversion Efficiency(DC-AC) | 98% |
OFF-GRID,HYBRID OPERATION |
PV INPUT(DC) |
Maximum DC Voltage | 60/500VDC |
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC |
MPP Voltage Range | 60VDC-450VDC |
Number Of MPPT/Maximum Input Current | 18A | 18A |
AC OUTPUT |
Nominal Output Voltage | 220/230/240VAC |
Nominal Output Current | 10A | 14.3A |
AC INPUT |
AC Start-up Voltage/Auto Restart Voltage | 120–140VAC/180VAC |
AC Input Voltage Range | 90–280VAC or 170–280VAC |
Maximum AC Input Current | 15A | 20A |
BATTERY MODE OUTPUT(AC) |
Nominal Output Voltage | 220/230/240VAC |
Efficiency | 94% |
BATTERY &CHARGER |
Nominal Voltage | 12VDC | 24VDC |
Maximum Solar Charging Current | 100A | 100A |
Maximum AC Charging Current | 80A | 80A |
Maximum Charging Current | 100A | 100A |
GENERAL |
PHYSICAL |
Dimension,D×W×H(mm) | 345×275×100 |
Package Dimension,D×W×H(mm) | 415×345×175 |
INTERFACE |
Communication Port | RS232/RS485/WIFI/BMS |
ENVIRONMENT |
Operating Temperature | -10 ℃ ~ 50℃ |
