FEATURES
Pure sine wave solar inverter(on/off Grid).
Output power factor 1.0 .
Standard WIFI Module, compatible with Android and IoS .
Inverter can run without battery.
One-key restoration to factory Settings.
Built-in Lithium battery automatic activation.
Dual communication ports for Battery communication and Wifi communication.
Built-in MPPT Solar charge.
High PV input voltage range(60~500VDC).
Built-in anti-dust kit for harsh environment.
Smart battery charge design to optimize battery life.
Dual output.
Offline upgrade through COMM port.
Maximum PV input current: 27A.
Inverter-lithium battery communication status displayed directly on the LCD interface.
In battery-free mode, PV systems deliver a better user experience when powering loads.
Add lithium battery information display to the APP.
The screen is movable and supports an expansion of up to 100 meters.
MODEL | SPE-M-4.2KW | SPE-M-6.2KW |
PHASE | Single phase |
Maximum PV Input Power | 6200W | 8000W |
Rate Output Power | 4200W/4200VA | 6200W/6200VA |
Grid-Tie OPERATION |
PV INPUT(DC) |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
Start-up Voltage/lnitial Feeding Voltage | 60VDC/90VDC |
MPPT Voltage Range | 60~450VDC |
Maximum lnput Current | 27A |
GRIG OUTPUT(AC) |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195~253VAC |
Nominal Output Current | 18.2A | 27.0A |
Power Factor | >0.99 |
EFFICIENCY |
Maximum Conversion Efficiency(DC-AC) | 98% |
OFF-GRID,HYBRID OPERATION |
PV INPUT(DC) |
Maximum DC Voltage | 500VDC |
Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC |
MPP Voltage Range | 60VDC-450VDC |
Number Of MPPT/Maximum Input Current | 27A | 27A |
GRID OUTPUT(AC) |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195~253VAC |
Nominal Output Current | 18.2A | 27.0A |
AC INPUT |
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
AC Input Voltage Range | 90-280VAC or 170-280VAC |
Maximum AC Input Current | 24.7A | 36.4A |
BATTERY MODE OUTPUT(AC) |
Nominal Output Voltage | 220/230/240VAC |
Efficiency | 94% |
BATTERY&CHARGER |
|
Nominal Voltage | 24VDC | 48VDC |
Maximum Solar Charging Current | 120A | 120A |
Maximum AC Charging Current | 100A | 100A |
Maximum Charging Current | 120A | 120A |
GENERAL |
PHYSICAL |
Dimension,D*W*H(mm) | 423*344*148 |
Package Dimension,D*W*H(mm) | 500*415*215 |
INTERFACE |

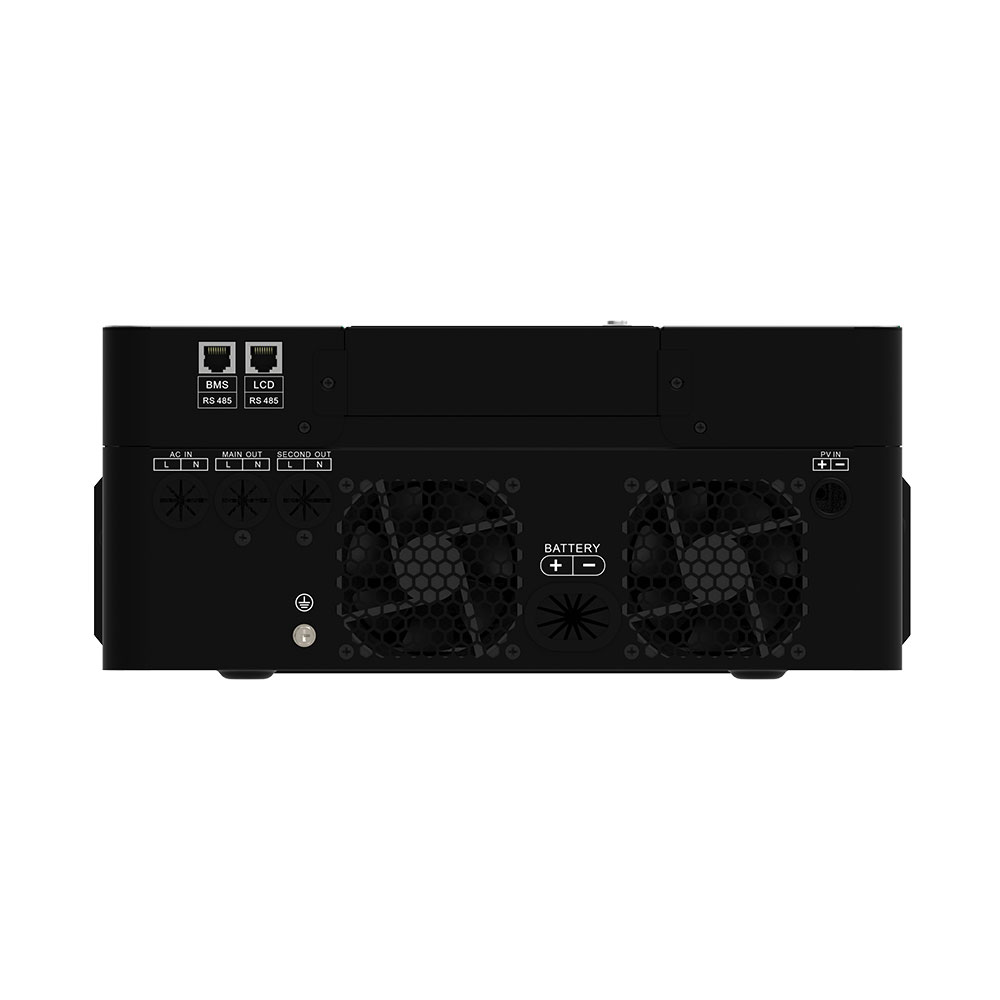

Communication Port | RS232/RS485/WIFI/BMS |
ENVIRONMENT |
Operating Temperature | -10℃~50℃ |
